BMW X3 Dashboard Warning Lights and What They Mean
Red means stop. Amber means act soon. Blue and green are informational. That color hierarchy is the fastest way to read any BMW X3 dashboard, and it applies across every generation from the E83 through the current G01.
Below you will find every significant warning light the X3 can display, its real name, its color, and the action BMW expects you to take. Oil pressure and coolant temperature in red always mean pull over immediately - every other light has more nuance, and this guide covers each one.

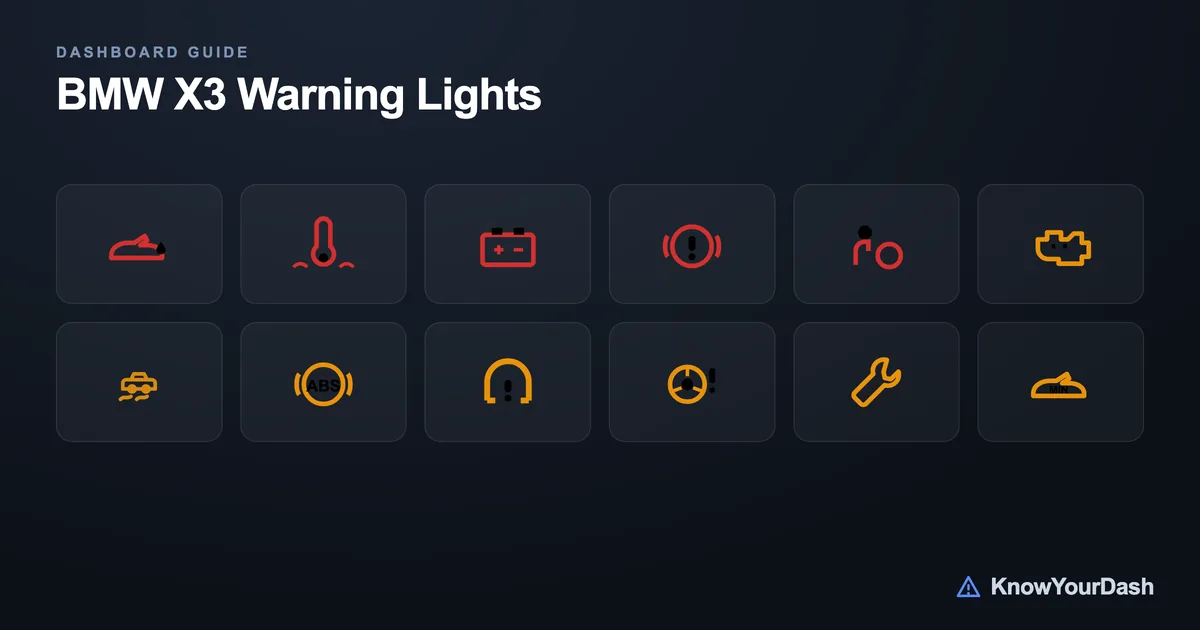

BMW X3 Warning Lights at a Glance
The table below covers the 16 most common warning lights you will see on an X3 dashboard. Each entry lists the light's real BMW name, its color, what it signals, and the recommended action. Lights marked red demand an immediate response - do not drive on until the cause is known.
Engine Oil Pressure
Oil pressure has dropped below the safe minimum. Continuing to run the engine risks catastrophic internal damage within seconds.
What to do: Pull over immediately, switch off the engine, and check the oil level with the dipstick. Do not restart until pressure is confirmed normal. Call for assistance if the level is fine but the light stays on.
Coolant Temperature - Overheating
Engine coolant has reached a dangerously high temperature. Common causes are a failed thermostat, a burst hose, or low coolant level.
What to do: Pull over safely, switch off the engine, and let it cool for at least 30 minutes before opening the hood. Do not remove the coolant cap while hot. Top up coolant only when cool, then drive to a workshop.
Battery / Charging System
The alternator is no longer charging the battery, or a major fault exists in the electrical circuit. The car is running on battery reserve only.
What to do: Minimise electrical load - turn off the AC, rear demister, and audio. Drive directly to a workshop. The car will eventually stall when the battery is exhausted.
Brake System
Brake fluid level is critically low, or a fault has been detected in the braking system. On newer X3 models this can also indicate an issue with the integrated brake system module.
What to do: Do not drive. Check brake fluid level in the reservoir under the hood. If the fluid is at the correct level, the fault is electronic - tow the vehicle to a BMW dealer for diagnosis.
Airbag / SRS
A fault has been detected in the Supplemental Restraint System. The airbags or seatbelt pretensioners may not deploy correctly in a collision.
What to do: Have the system scanned by a workshop as soon as possible. Common causes include a faulty clock spring in the steering wheel, a disconnected seat sensor, or a damaged crash sensor.
Red Exclamation / Stop Vehicle
A critical system fault requires the vehicle to be stopped immediately. BMW Check Control will display an accompanying text message explaining the specific fault.
What to do: Pull over safely as soon as possible and read the Check Control message on the instrument cluster. Do not restart without knowing the cause.
Engine Malfunction / Check Engine (MIL)
The engine management system has stored a fault code. On the X3 this is often an emissions-related issue such as a faulty oxygen sensor, catalytic converter, or fuel cap not fully tightened.
What to do: A steady amber engine light is not an emergency - book a diagnostic scan soon. A flashing engine light means an active misfire is occurring; reduce speed and have the car inspected the same day.
DSC - Dynamic Stability Control
A steady DSC light with 'DSC OFF' text means the system has been manually deactivated. A steady light without that text indicates a fault in the DSC or wheel speed sensors.
What to do: If you pressed the DSC button accidentally, hold it for three seconds to re-enable. If the light stays on without the button being pressed, have the wheel speed sensors and DSC module inspected.
ABS - Anti-lock Braking System
A fault has been detected in the ABS module or a wheel speed sensor. Normal braking still works but the anti-lock function is disabled.
What to do: Drive carefully and avoid heavy braking situations. Have the ABS module and wheel speed sensors checked promptly. On 2016-2021 X3 models, ABS module failure is a known issue.
RDC - Tire Pressure (Flat Tire)
One or more tires has lost significant air pressure. BMW's RDC system triggers when pressure drops roughly 20% below the recommended level.
What to do: Pull over when safe and check all four tires visually. Inflate the underinflated tire to the correct pressure shown on the door sill sticker, then reset the RDC via the iDrive menu under 'Vehicle settings'.
EPS - Electric Power Steering
A fault has been detected in the Electric Power Steering system. Steering may feel heavier than normal or may require more effort.
What to do: Power steering assist may be reduced. Drive to a workshop at reduced speed. Restart the engine in a safe location - this sometimes clears a temporary EPS fault.
Drivetrain Malfunction
The engine or transmission management system has detected a fault and may have entered a reduced-power limp mode to protect components. Common triggers include spark plugs, ignition coils, or transmission sensors.
What to do: Reduce speed and avoid hard acceleration. Drive to a workshop the same day. Have the fault codes read with a BMW-compatible scanner - do not ignore this warning as continued driving can worsen the fault.
Low Oil Level
Engine oil has dropped to the minimum level. This is distinct from the red oil pressure warning - the engine is not yet in danger but needs oil added soon.
What to do: Top up with the correct BMW Longlife-01 or LL-04 approved oil as soon as convenient. Check the level again with the electronic oil level check in the iDrive after adding oil.
xDrive / AWD System Fault
A fault has been detected in the xDrive all-wheel drive system. The vehicle may revert to rear-wheel drive only, reducing traction in poor conditions.
What to do: Avoid driving in slippery conditions. Have the xDrive transfer case and associated sensors inspected by a BMW workshop. Often occurs alongside DSC and ABS warnings.
Coolant Temperature - Cold Engine
The engine has not yet reached its normal operating temperature. This is normal for the first few minutes after a cold start.
What to do: No action needed. Avoid high RPM and aggressive acceleration until the light goes out, usually within two to five minutes of normal driving.
Parking Brake / Auto Hold
The electronic parking brake is applied, or the Auto Hold function is active holding the car stationary. On X3 models with the electric parking brake this light also warns of a system fault if it stays on while driving.
What to do: If you are stopped intentionally, no action needed. If the light stays on while driving, the electric parking brake may be partially engaged or faulty - have it inspected.
Red Warning Lights - Stop Driving Now
BMW uses red for situations where continuing to drive risks serious damage to the car or injury to occupants. The three you are most likely to encounter on an X3 are oil pressure, coolant temperature, and brake system.
Oil pressure is the most critical. If that red oil can icon appears while moving, switch off the engine within seconds - not at the next junction, but immediately in the nearest safe spot. Running a BMW N20 or B48 engine with no oil pressure for even two minutes can destroy the bearings.
The red battery light is less urgent but still serious. The car is drawing down its stored charge with no alternator replenishment. Switching off the air conditioning and rear window heater buys a little time, but the engine will eventually cut out when the battery is flat. Head straight to a workshop.
Amber Warning Lights - Service Needed Soon
Amber lights on the BMW X3 mean the car has detected a fault that needs attention, but is not asking you to pull over this instant. That said, 'soon' should mean the same day or the next morning - not next week.
The DSC light is the one most often misread. A single press of the DSC button on the center console partially disables the system; a long press disables it fully and lights the amber indicator. Holding the button for three seconds re-enables everything. If the light comes on without you pressing anything, a wheel speed sensor is the most common culprit.
The Drivetrain Malfunction message is unique to BMW and covers a broad range of engine and gearbox faults. On petrol X3 models the N20 four-cylinder and B46/B48 units frequently trigger this via a failing ignition coil or spark plug. The car will often enter limp mode - limiting the engine to a fraction of its normal output - to prevent damage. A ISTA-compatible scan will pinpoint the stored fault code.
The RDC tire pressure warning triggers at roughly 20% below the door-sill pressure recommendation. Check all four tires, not just the one that looks flat - slow leaks can affect multiple wheels. After inflating, reset the system through iDrive: Vehicle menu, Tire Inflation Monitor, Reset.
When Multiple Warning Lights Come On Together
Seeing ABS, DSC, and brake warning lights illuminate at the same time is a known pattern on the 2016-2021 BMW X3. It points to a failing ABS/DSC control module rather than three separate component failures. BMW issued a safety recall for this on certain 2023-2025 models covering the integrated brake system.
xDrive faults frequently appear alongside DSC and ABS warnings because all three systems share the same wheel speed sensor data. If you see this cluster of amber lights, have the wheel speed sensors tested first before replacing more expensive modules.
If a red warning light appears alongside several amber ones, treat it as a red situation and stop driving. The amber lights are secondary to the red fault.
Common questions
What does the BMW X3 'Drivetrain Malfunction' warning mean?
It means the engine or transmission management system has detected a fault and has stored a diagnostic trouble code. The car may enter limp mode, cutting power significantly to protect components. Common causes on petrol X3s include a faulty ignition coil, worn spark plugs, or a transmission sensor fault. Have it scanned the same day - do not clear the code without reading it first, as that erases the diagnostic evidence you need.
Can I drive my BMW X3 with the DSC warning light on?
If the light is amber with 'DSC OFF' text, you have accidentally deactivated the system - hold the DSC button for three seconds to re-enable it. If the light comes on without you pressing anything, the stability and traction control systems are inactive, which is fine on dry roads but risky in wet or icy conditions. Drive carefully to a workshop that day.
How do I reset the RDC tire pressure light on a BMW X3?
Inflate all four tires to the pressure shown on the sticker inside the driver's door frame. Then go to iDrive, select the Car menu, then 'Tire Inflation Monitor', and choose Reset. The light should go off within a few minutes of driving. If it returns immediately, one tire is still losing pressure and needs a closer inspection for a nail or valve fault.
What does the red oil can warning light mean on the BMW X3?
It means engine oil pressure has dropped critically low. This is a stop-immediately situation. Pull over in the nearest safe place and switch off the engine. Check the oil level on the dipstick or via the iDrive oil level check. If the level is correct but the light stays on, the oil pump or a sensor may have failed - do not restart. Call for roadside assistance or towing.
Why is the battery warning light on in my BMW X3?
The red battery light means the alternator has stopped charging the battery, or there is a major fault in the charging circuit. The car is running solely off stored battery power. Turn off non-essential electrics - air conditioning, rear demister, seat heaters - and drive directly to a workshop. The car will stall when the battery is fully discharged, so do not take any detours.
Is the blue coolant light on a BMW X3 a problem?
No - a blue coolant temperature light is normal and means the engine is still warming up after a cold start. Avoid high revs and hard acceleration until it goes out, which takes two to five minutes of normal driving. Only worry if the light is red rather than blue, which signals genuine overheating and requires you to stop immediately.
